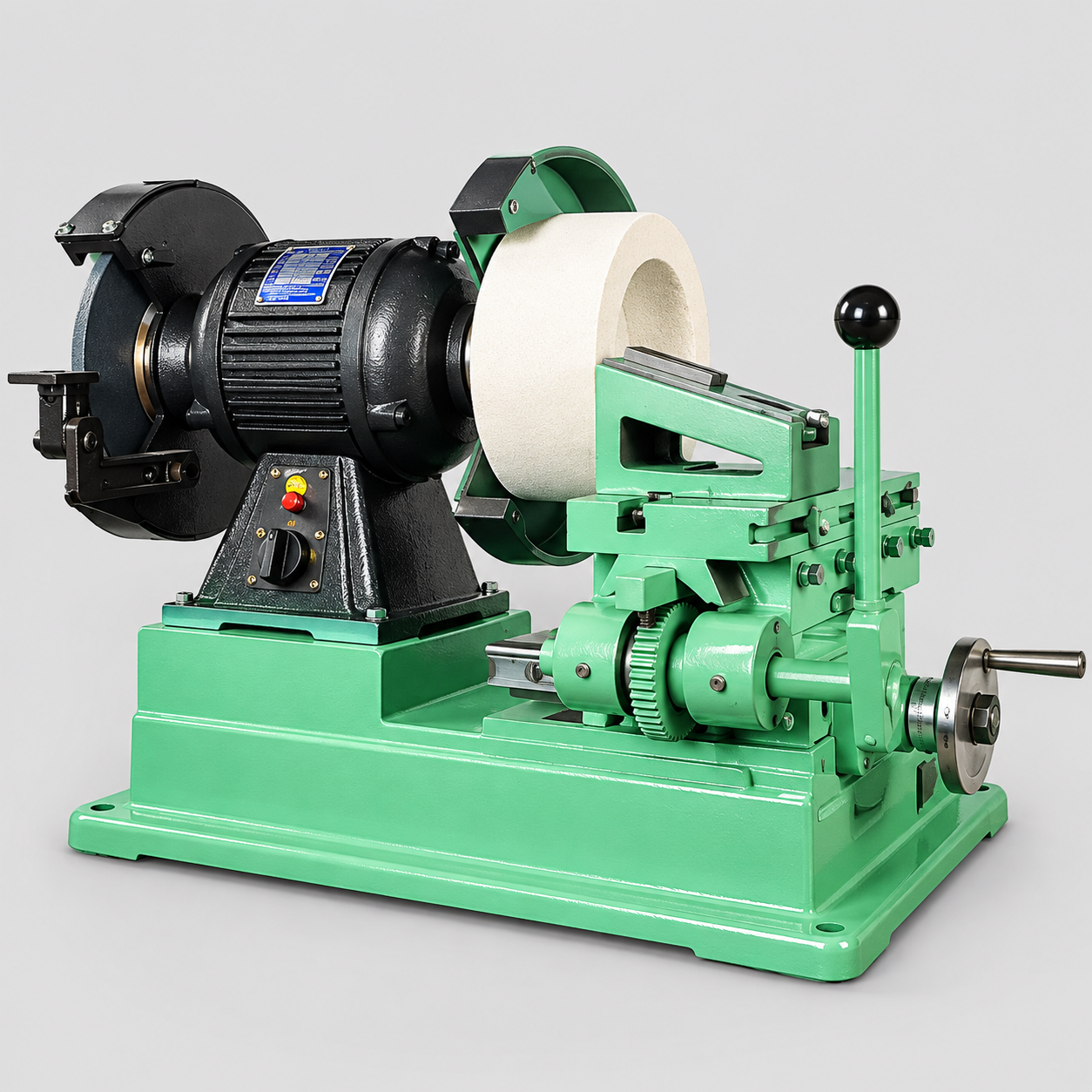

Chaser Grinder

The Chaser Grinder is a precision grinding machine designed for grinding HSS Chasers as well as other conventional cutting tools. An 8″ diameter cup wheel is fitted at one end for HSS chaser grinding, while a 10″ diameter grinding wheel is mounted at the other end for grinding conventional tools.

The secondary slide carrying the chaser is equipped with a precision lead screw and a graduated disc with 0.001″ divisions, allowing close and accurate control of the grinding operation. The specially designed chaser holder can accommodate 2¼″ or 1″ chasers and provides a 5° clearance angle.

Key Features

• Specially designed for grinding HSS Chasers
• 8″ diameter cup wheel for HSS chaser grinding
• 10″ diameter wheel for conventional tool grinding
• Precision lead screw for accurate slide movement
• Graduated disc with 0.001″ divisions
• Chaser holder accommodates 2¼″ or 1″ chasers
• Designed to provide 5° clearance angle
• Suitable for precision tool and chaser grinding
