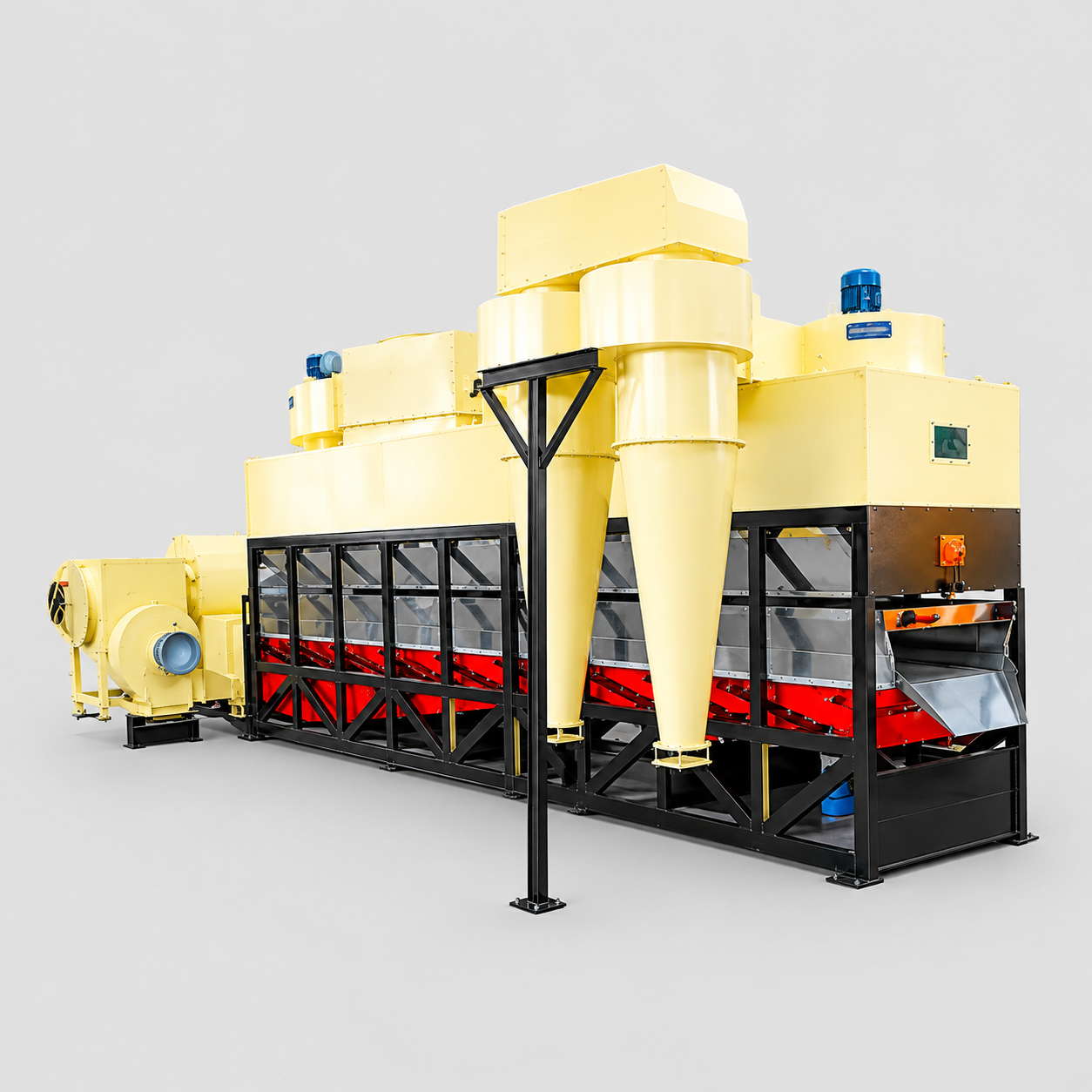

Agni Vibro Fluid Bed Dryer

AGNI, the Vibratory Fluid Bed Dryer, the most efficient, reliable and cost-effective Dryer for both CTC and Orthodox Tea.

Fermented tea is fed through a feeding conveyor to the Drying Chamber where conditioned hot air is introduced underneath a perforated stainless steel grid plate which carries the wet tea by the principle of fluidization, combined air and vibration.

In this process fermented tea is dried uniformly to achieve best quality tea.

Construction

• Heavy Mild Steel fabricated frame structure.
• Heavy duty mechanical excitation system through alloy steel eccentric crank shaft drive.
• Plenum Chamber is coupled with the main frame with leaf spring for even vibratory effect throughout the total drying bed.

Plenum Chamber

• Aero dynamically designed to achieve desired air volume and pressure for effective fluidization of the tea.
• Heavy mild steel insulated construction to prevent heat loss.
• Stainless Steel AISI 304 perforated grid plate to carry the tea on top of the plenum chamber.

Air Mixing Chamber

• Mild Steel insulated construction.

Hot Air Blower

• Heavy mild steel insulated construction with control damper.
• Dynamically balanced Impeller as per IS standard.
• Double inlet construction for uniform air flow.

Dust Extraction and Cyclone System

• Dust extraction System is designed to extract humid air from the drying chamber.
• After drying the lighter dust particle with fibers are removed from the drying system with the help of cyclone.

Stainless Steel Construction

• All possible parts which are in contact with the tea are of food graded corrosion resistance stainless steel.
• Dust extractor multicore and impellers all are of food grade corrosion resistance stainless Steel.
• The heating chamber is covered with stainless steel side spillage guards throughout the length.

Centralized Control Panel

• Single unit with Isolator, digital voltage, amp meter and four temperature indicator.
• Design as per international standard with all switch gear components.
