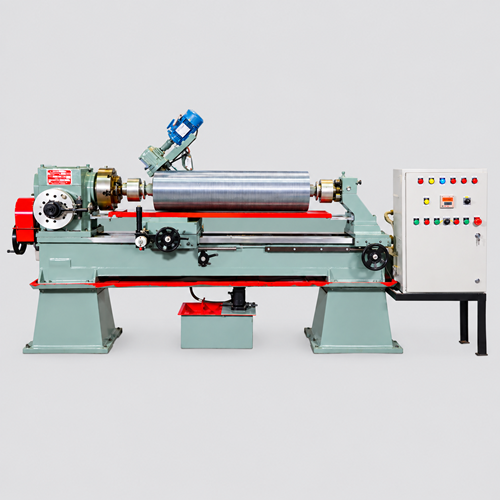

Automatic CTC Roller Milling Machine

Martin’s Automatic CTC Roller Milling Machine is electrically control automatic machine, suitable for 40 to 100 helical groove of 7.5” to 13” dia. CTC roller, can accommodate roller length up to 54” length.

Automatic CTC Roller Milling Machine
Martin’s Automatic CTC Roller Milling Machine is electrically control automatic machine, suitable for
40 to 100 helical groove of 7.5” to 13” dia. CTC roller, can accommodate roller length up to 54”
length.
Heavy duty, graded casting bed, high graded EN steel lead screw for long life.
Single geared motor for three different forward & one rapid reverse movement, operated by VFD.
Automatic helical change and cutter in-out arrangement.
Centralised cooling and lubrication arrangement.
Technical Features:
 Forward motor 1.5 Kw,
 Cutter motor 0.75 kw,
 Coolant Motor 0.1 kw,
 Synchronous motor- 0.03 Kw,
 Pre-set counter for helical number.
 Forward Movement in three different speed and rapid reverse by VFD.
 Overall machine Length- 3200, Width-1200, Height-1650.
 Centralised control panel with supply 415 V AC, 3 Ph., 50 Hz.
(Due to continuous process of product development, the design is subject to change without prior
notice.)
