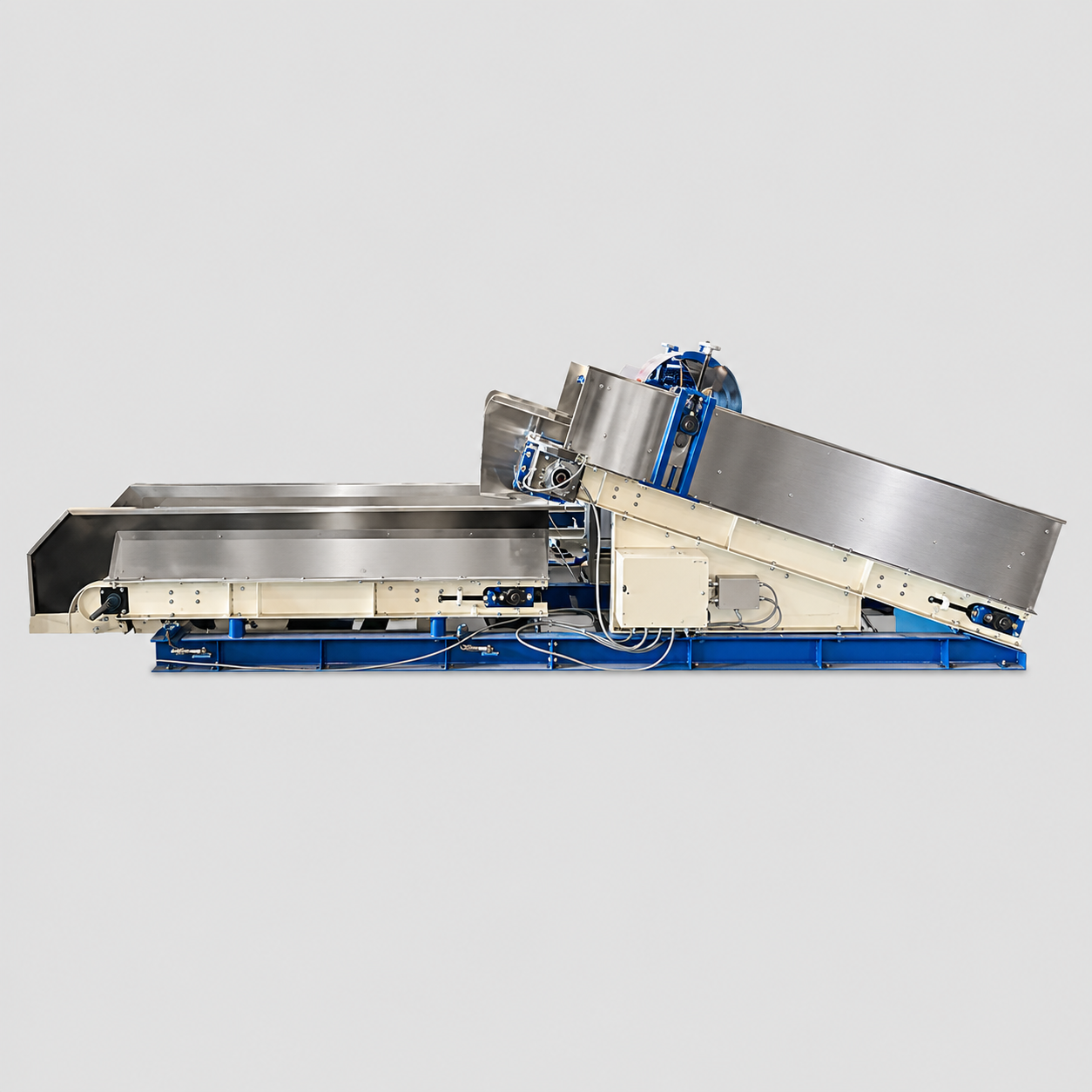

Automatic Rotorvane Feeder

Continuous and uniform feeding system of withered leaf to Rotorvene and CTC for smooth, even and
uninterrupted processing for CTC line.
Salient Features
● Uniform feeding through “Rotorvene Feeding System” , ensures smooth, uninterrupted flow
of withered leaf to Rotorvene and CTC line.
● Process helps even cut in CTC, easy to control , less attendance in CTC processing line and
finally consistence & even output.
● System need only to enter required data, i.e., amount in Kg of withered leaf to be process
per hour.
● Large touch screen LCD display for easy operation, monitor & control.
● Data Storage of previous batches with date &
time.
● Detailed event logs of infidel of individual batch from previous 99 batch.
● High performance PLC for accurate and trouble free performance with ± 2-3% feeding
accuracy.
● Elaborate self-diagnostics system for better performance.
● Audio announcement facility for ease of
operation.
● Computer interface for centralized monitoring of the feeder operation (Optional).
● All contact parts with tea leaf are made of Stainless Steel 304 Grade.
Technical:
● Machine capacity to carry 500-3000 Kg/Hr. withered leaf.
● Machine Overall dimensions- L-3000 x W-990 x H- 1040.
● Motor- 2 no’s: 0.5 & 0.75 hp.
● Power Supply- 415 V AC, 3 Ph., 50 Hz.
(Due to continuous process of product development, the design is subject to change without prior
notice.)
